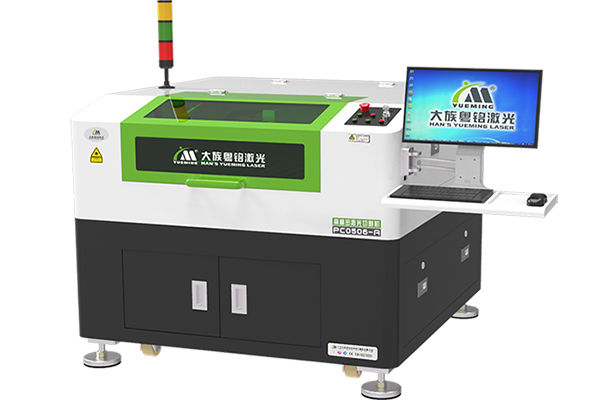

High Precision CO2 Laser Cutting Machine, PC0506-A
High Precision CO2 Laser Cutting Machine, PC0506-A
Product Feature
PC0506-A high precision CO2 laser cutting machine is designed with double-drive gantry structure and equipped with high-inertia serve motor. Its maximum accelerated speed is 1G.
This machine has a high stiffness strengthened welding lathe bed, a high rigidity beam and a high precise marble work table which ensures its high rigidity and high dynamic performance.
This high precision CO2 laser cutter uses high quality laser device and optical instrument which ensures stable output power and low maintenance cost.
The laser cutting software independently researched and developed by ourselves provides excellent motion control and powerful graphic processing.
The special designed exhaust system can effectively inhale smoke and isolate waste.
Technical Parameter
Model
PC0506-A
Laser power (W)
30-150
Cutting range (mm)
500*600
Max speed（mm/s）
1000
Repeated positioning accuracy (mm)
±0.1
Overall dimension (mm)
1300x1350x1200
Weight（Kg）
850
Supply voltage
Single phase 220V,35A,50Hz
Gross power（Kw）
7
Working environment
Temp: 10~30℃ Humidity: 40~80%
Application

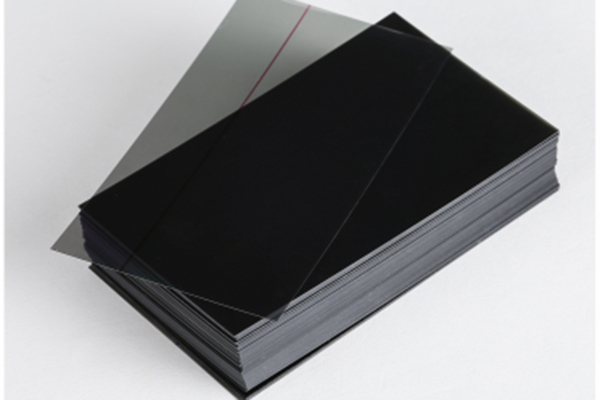

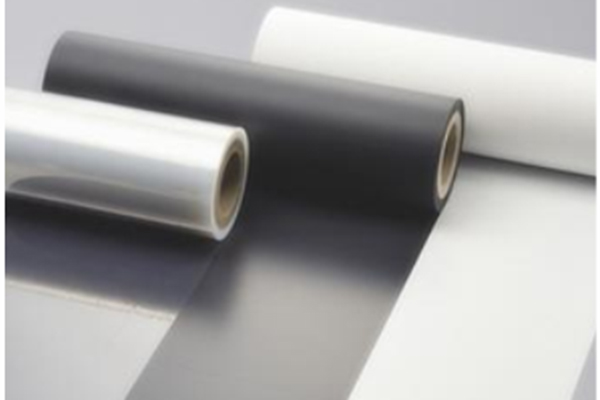

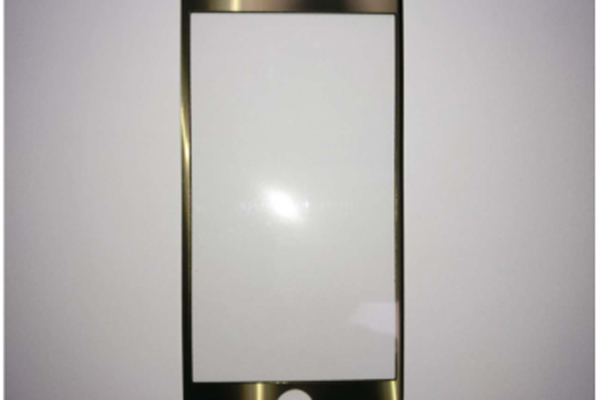

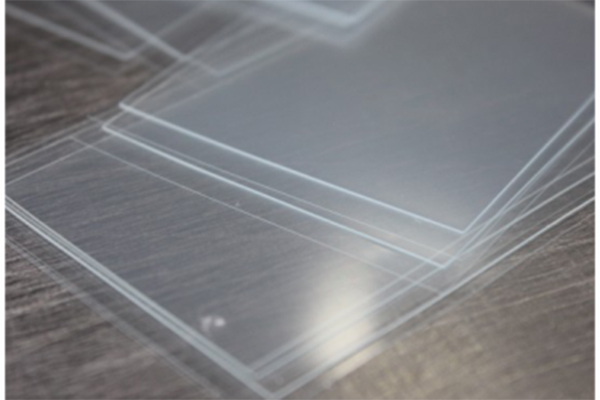

This machine is designed for high precision cutting of non-metallic film materials including GDF membrane, polaroid, PET screen, OCA, ePaper, writing pad, flexible OLED, etc.
