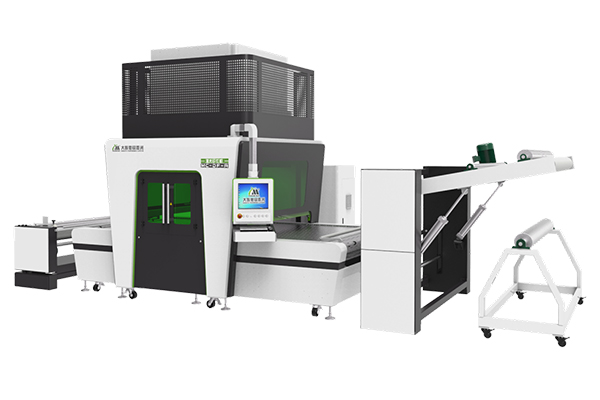

Large Format Seamless Splice Laser Fly Marking, MC-DF-A

Large Format Seamless Splice Laser Fly Marking, MC-DF-A

Applicable material:
Natural and artificial fabrics, leather and artificial leather

Technical parameters:

Model	MC-DF-A
Laser power (W)	350 / 550
Working area (mm)	1400-1800×Infinite length
Overall dimension (mm)	7200 × 4000 × 3250
Weight (kg)	∠1000
Speed (mm/s)	0~30
Power supply	AC380V ,50HZ
Working environment	Temp: 20~ 35°C Humidity: 5-80% No condensate water, no dust or less dust.

Samples:

Features:
1. While the conveyor is transporting material, the control system will control the laser beam, the motion of scanning head and the speed of the conveyor line to achieve 1800mm*infinite length large format seamless splice laser fly marking.
2. Automatic rolling and unrolling: automatic modular design rolling system needs just one operator, greatly improving production efficiency.
3. Deviation correction system: it will correct the deviation generated during the rolling process to achieve high precision of seamless splice laser fly marking.
4. Length counter: it can accurately calculate the length of processing material, integrate the functions of cloth measuring machine, effectively reducing the profit loss due to the roll material increase.
5. Conveyor mesh belt: customized stainless steel punching chain mesh belt in combination with hydromechanics analysis absorption structure achieve high absorption force and running stability.
